Radiative Cooling Film For Construction Field, Power Equipment, Industrial And Special Warehousing,Oil Tank,Grain Depot,Transportation And Outdoor Facilities, And Emerging Lifestyle Applications
Radiant cooling film is a hiah-tech functional flm developed based on advanced ontical principles, it achievesefective cooling without consuming energy through a dual mechanism of reflecting sunlight and dissipatingheat in the form of radiation. This product can be directly applied to object surfaces or used in combination withvarious substrates (such as steel plates and rols) to significantly reduce the surface and internal temperature ofbuildings or equipment, achieving energy conservation, reduced consumption, and improved comfort.
- Overview
- Recommended Products
Product Introduction
| Place of Origin | China |
| Brand Name | Huacheng |
| Model Number | Qiaomo |
| Minimum Order Quantity | 240 square meter |
| Payment Terms | T/T, L/C, PayPal, Western Union, Cash |
Product Features
1.Self-cleaning surface with superhydrophobic properties, reducing maintenance costs.
2.Enhanced airtiahtness, excellent airtiahtness, can replace building waterproofing.
3.Aging resistant, stable cooling performance without degradation.
4. Green and environmentally friendly, made with safe and non-toxic environmentally friendly materials.Before construction, the direct should have installed curbstones. If curbstones are not installed, formwork must be set up.
Applications

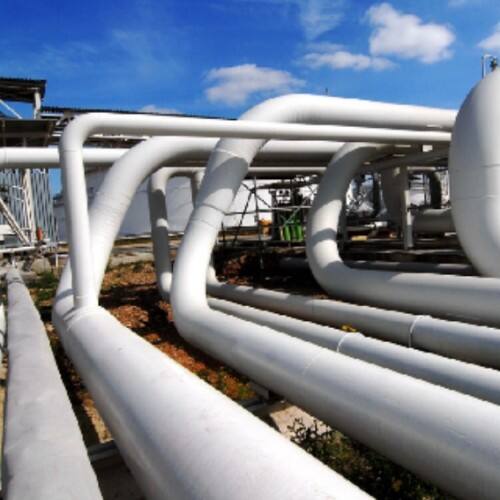

Widely applicable in the construction field, power equipment, industrial and special warehousing,oil tank,grain depot,transportation and outdoor facilities, and emerging lifestyle applications
 |
 |
Specifications
| Test Item | Test Method | Unit | Performance Parameter |
| Solar Reflectance | GB/T26800-1994 | % | 90 |
| Atmospheric Window (8-13μm) Emissivity | T/ZZB-2304 | % | 90 |
| Radiative Cooling Power | T/ZZB-2304 | W/㎡ | 120 |
| Adhesion | GB/T 9286-1998 | Grade | Grade 1 |
| Alkali Resistance | GB/T 9265-2009 | h | ≥168 |
| Flame Ratardancy | GB 8624-2012 | Grade | A（A2-s1,d0) |
| Damp Heat Resistance | GB/T 1740-2007 | / | Compliant |
| Artificial Weathering (Aging) | GB/T 1865-2009 | / | No Visible Change |
| Netural Salt Spray Resistance (1000H) | GB/T 1771-2007 | / | No Visible Change |
| Abrasion Resistance | GB/T 1768-2006 | mg | 0.04 |
| Self-Cleaning Property | DL/T 627-2012 | Grade | 1 |
